LS376/480 Connect & Cruise Crate Powertrain System W/ 6L80-E

Mixing the capable LS "Hot Cam" with the powerful 6.2L LS3 takes affordable performance to a great, new level - 495 horsepower and 473 lb.-ft. that will wake up your vintage Camaro, Chevelle or "shoebox" Chevy. The 6L80-E Six-speed double overdrive transmission backs the LS376/480 with strength and durability. Put this combo to work in your classic cruiser and enjoy a great balance of performance and efficiency!

Each Connect & Cruise kit delivers a brand new fully assembled crate engine, an electronically controlled overdrive transmission, electronic control modules for both and the engine control hardware to get it all running in your project vehicle – including the mass airflow sensor, oxygen sensors and even the special throttle pedal for the engines' electronic throttle bodies.

Chevrolet Performance engineers matched the engines with their respective transmission, ensuring it was up to the task of channeling big power with absolute dependability. The engine controller is specially calibrated to run the engine without some of the production-vehicle features that aren't required in an older vehicle. That means no "trouble" codes and no need for third-party tuning. Better still, the systems' unique SuperMatic transmission controller is designed to work with the engine controller for a seamless, "plug and play" installation that is quick, easy and intuitive. Detailed instructions outline all the necessary steps.

The engineers did all the hard work of designing and calibrating perfectly matched powertrain systems – and we've covered them with a 24-month/50,000-mile limited warranty. All you have to do is install them and start cruising!

Connect & Cruise System Components:

Part Number: Connect & Cruise CPSLS3764806L80E

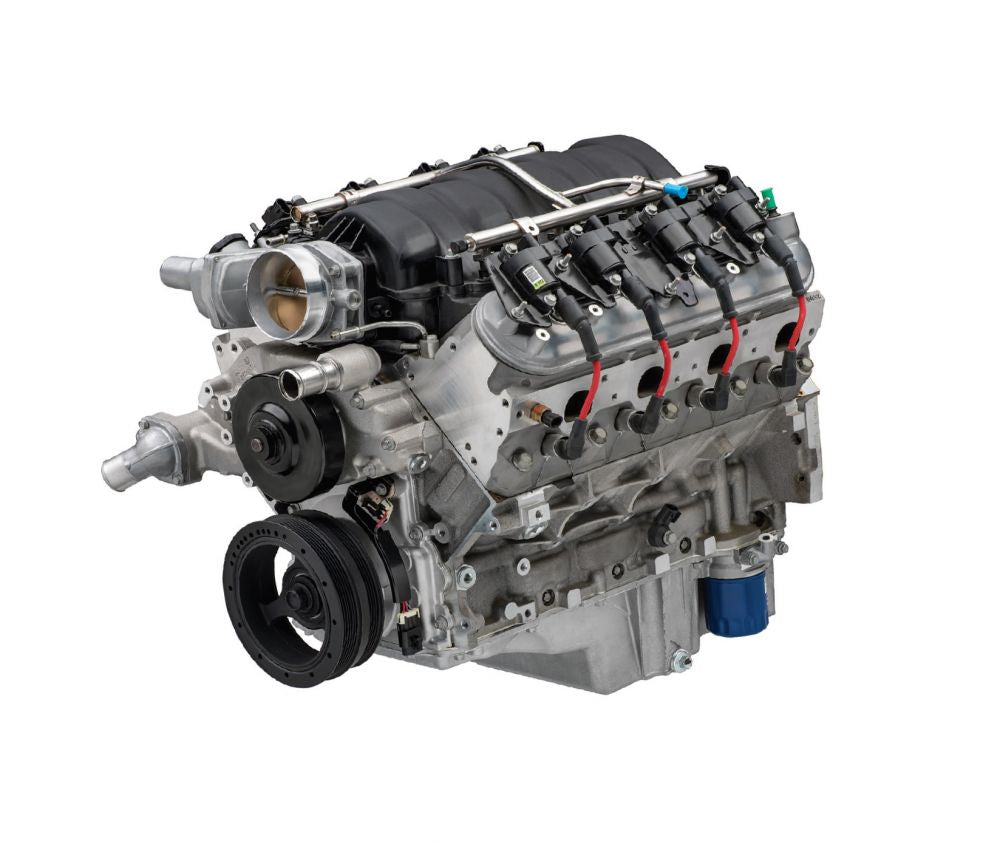

Engine: 19419864

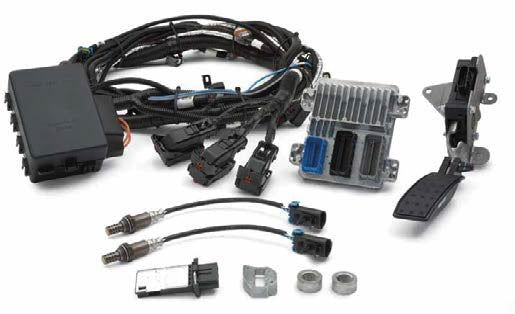

Engine Control System: 19354330

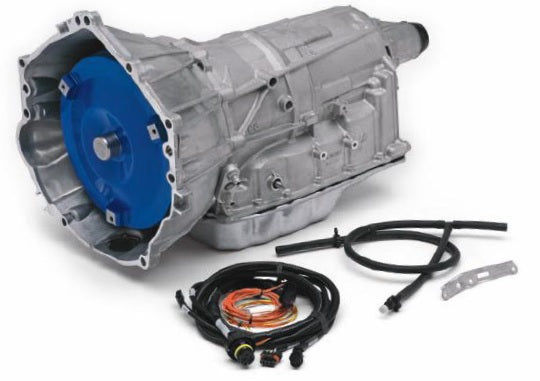

Transmission: 19417102

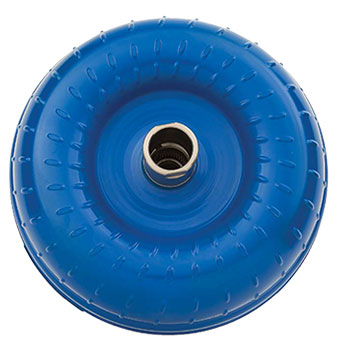

Torque Converter: Included with Transmission

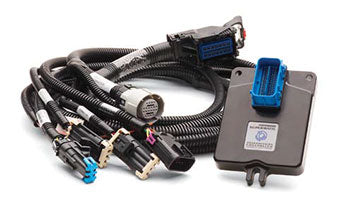

Transmission Control System: Included with Transmission

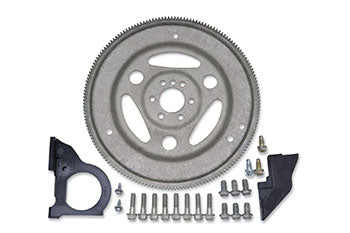

Flywheel Kit: N/A
Transmission Installation Kit: 19420358

Engine Specifications

• LS376 / 480 (376 cu in)
• 480 hp @ 5,750 rpm
• 475 lb.-ft. @ 4,500 rpm
• 10.7:1 compression ratio

Transmission Specifications 2WD

• 6L80-E Six-speed automatic
• 4.02 first gear ratio, 0.67 overdrive ratio
