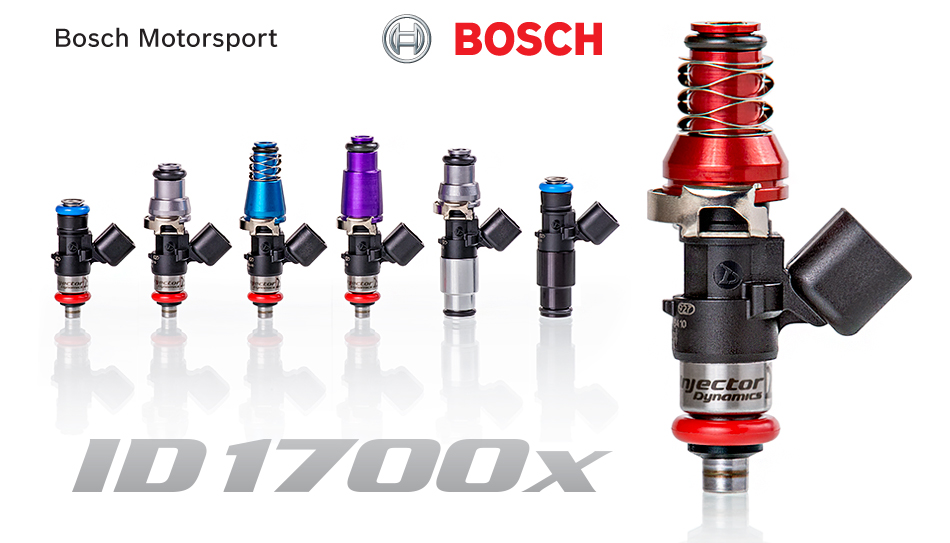

Injector Dynamics ID1700

The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.

• Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels. YES, E85 APPROVED!

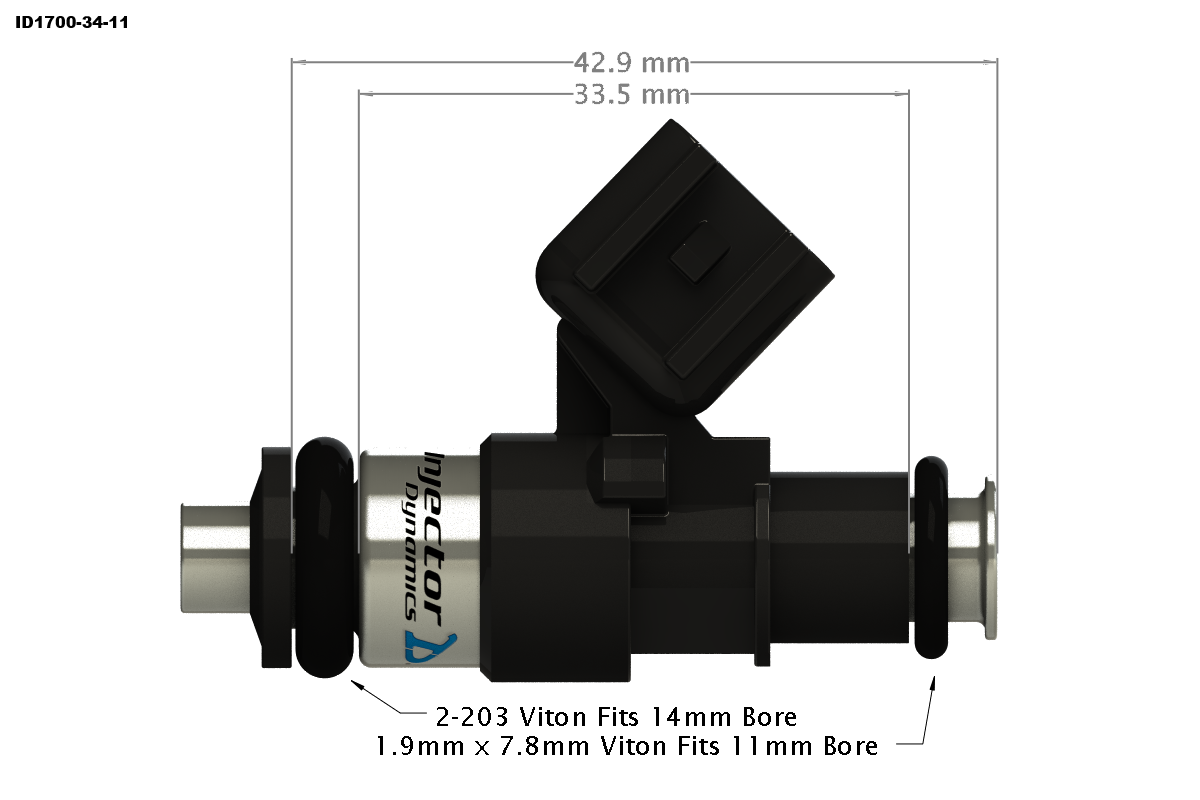

• Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
• Improved internal flow path increases output by 5% without sacrificing low flow performance.
• High-impedance design (no resistor box required)

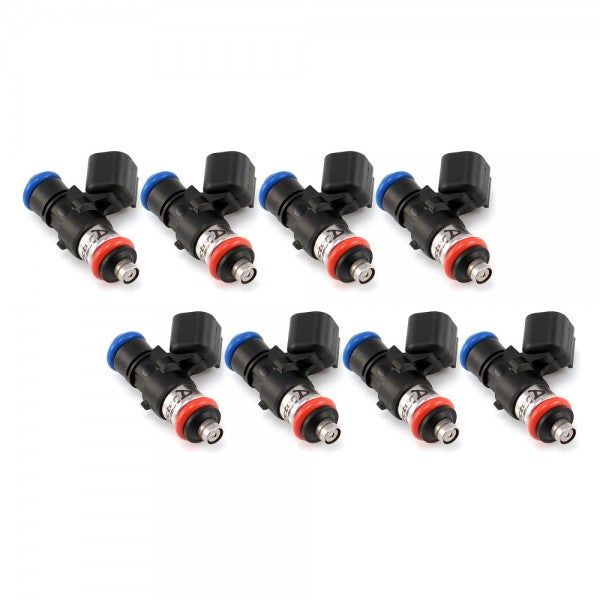

• All injectors balanced, flowmatched within one percent
• Stronger magnetic circuit offers stable operation up to 10 bar.
• Replaceable inlet filter extends service life.

Nominal Flow Rate – 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)

Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)

Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
Electrical Connector – USCAR
