Harrop TVS2650 LS ENGINE KIT

Key Features:

• Eaton TVS2650 Rotors: Incorporates Eaton's largest TVS2650 rotating group, validated to OEM specifications, delivering exceptional performance and reliability.
• Integrated Intercooling: Features twin-pass intercooler cores within the manifold, enhancing thermal efficiency and supporting horsepower capabilities exceeding 1,200 HP.

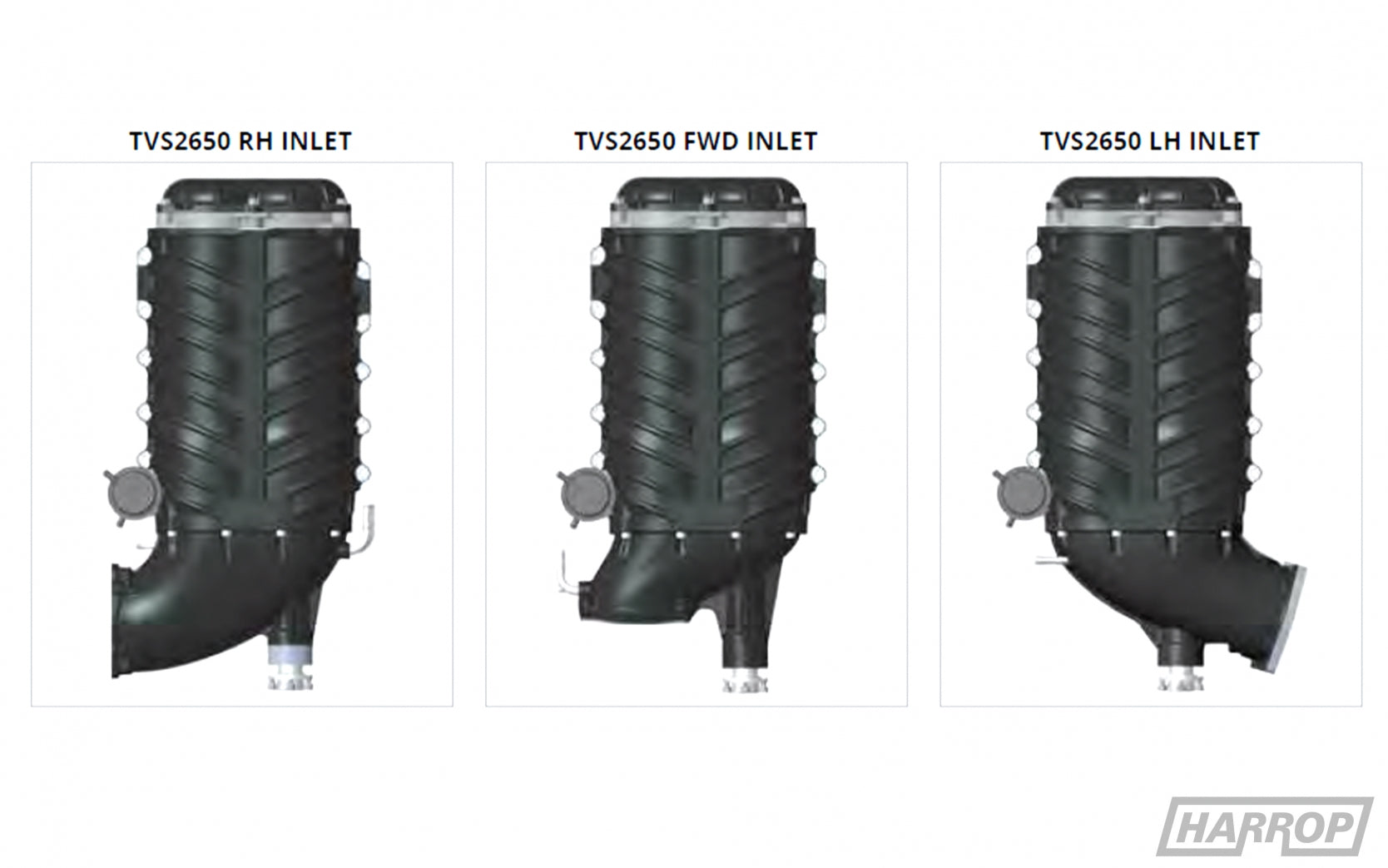

• Front Drive/Front Inlet Design: Eliminates the traditional transfer shaft, resulting in quieter operation and more efficient power delivery.
• Versatile Throttle Body Compatibility: Accommodates various throttle body sizes, including GM factory and aftermarket options, for flexible integration.
• Comprehensive Kit Components: Includes a high-efficiency supercharger, cast inlet manifold with intercooler cores, fuel rails, IAT sensor, valley plate, gaskets, and supercharger pulley.

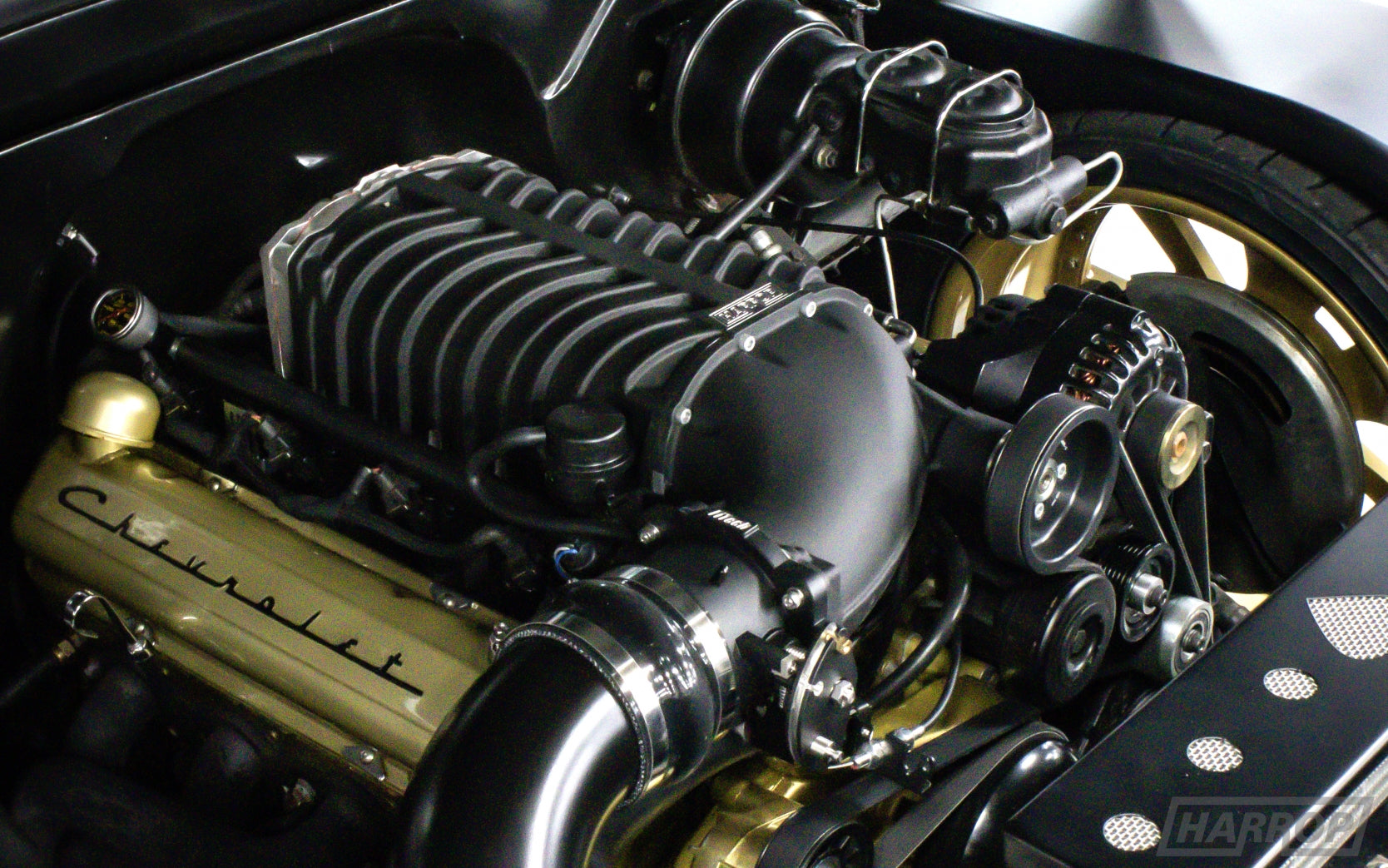

Overview: The TVS2650 LS Engine Kit is engineered for LS engine-equipped or retrofitted vehicles, offering a significant boost in performance. Extensively tested over two years using SAE standards, this system resets the performance potential for positive displacement supercharger technology. Each unit is individually tested in-house on a dynamometer to ensure reliability and durability. The integrated intercooler system provides greater thermal and volumetric efficiency, unleashing the full potential of late-model LS engines.

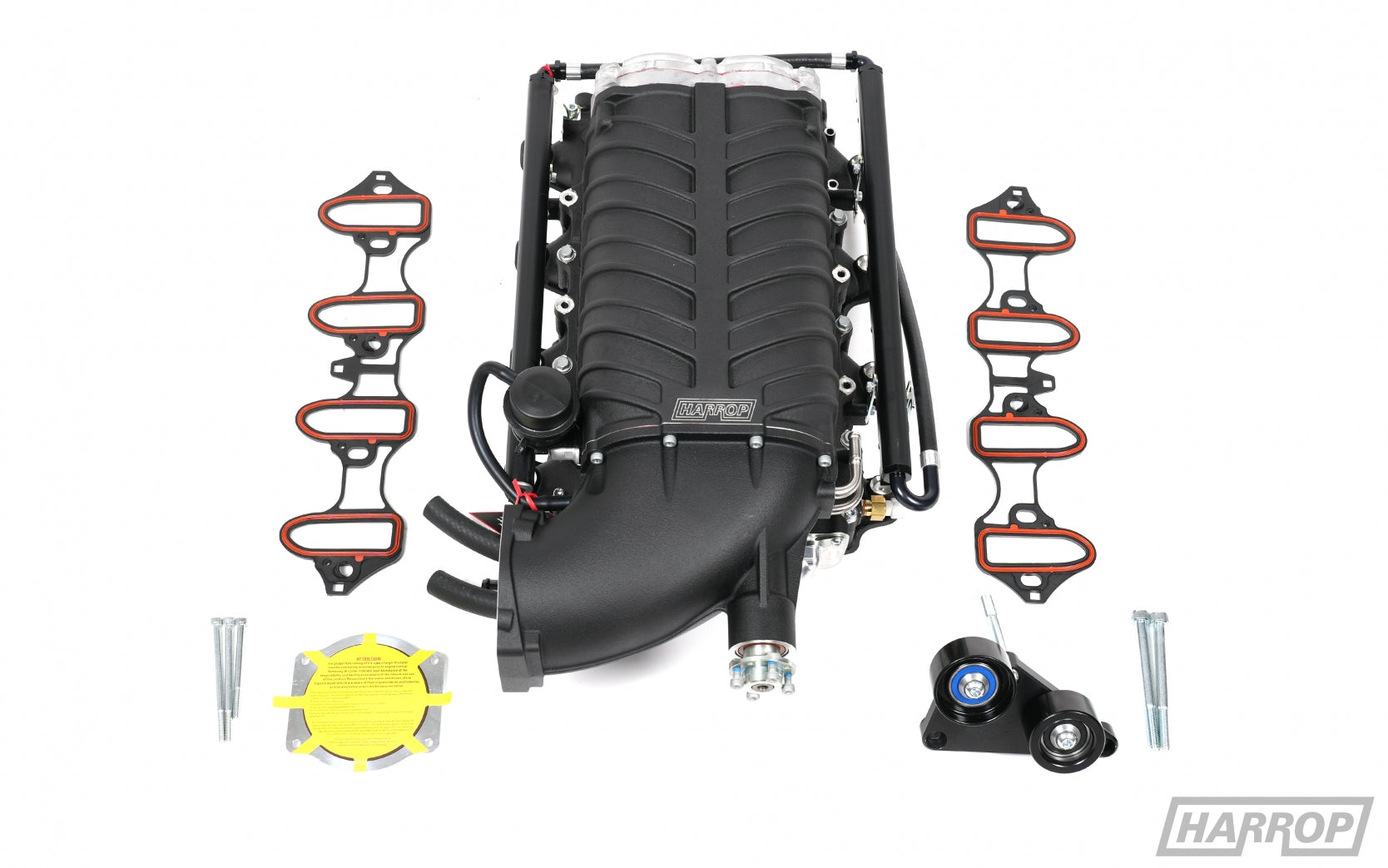

Kit Includes:

• High-efficiency 2650 front drive, front inlet supercharger
• Cast inlet manifold with twin intercooler cores, fuel rails, and IAT sensor
• Valley plate and bolts (if required)
• Inlet manifold gaskets
• Supercharger FEAD idler - 6PK
• Supercharger pulley

Kit Does Not Include:

• Intake (CAI or OTR)
• Throttle body
• Patch looms/harnesses
• Injectors
• Intercooler kit/front mount heat exchanger
• Install kit including loom extensions, hoses, and fittings
• MAP sensor

Applications:

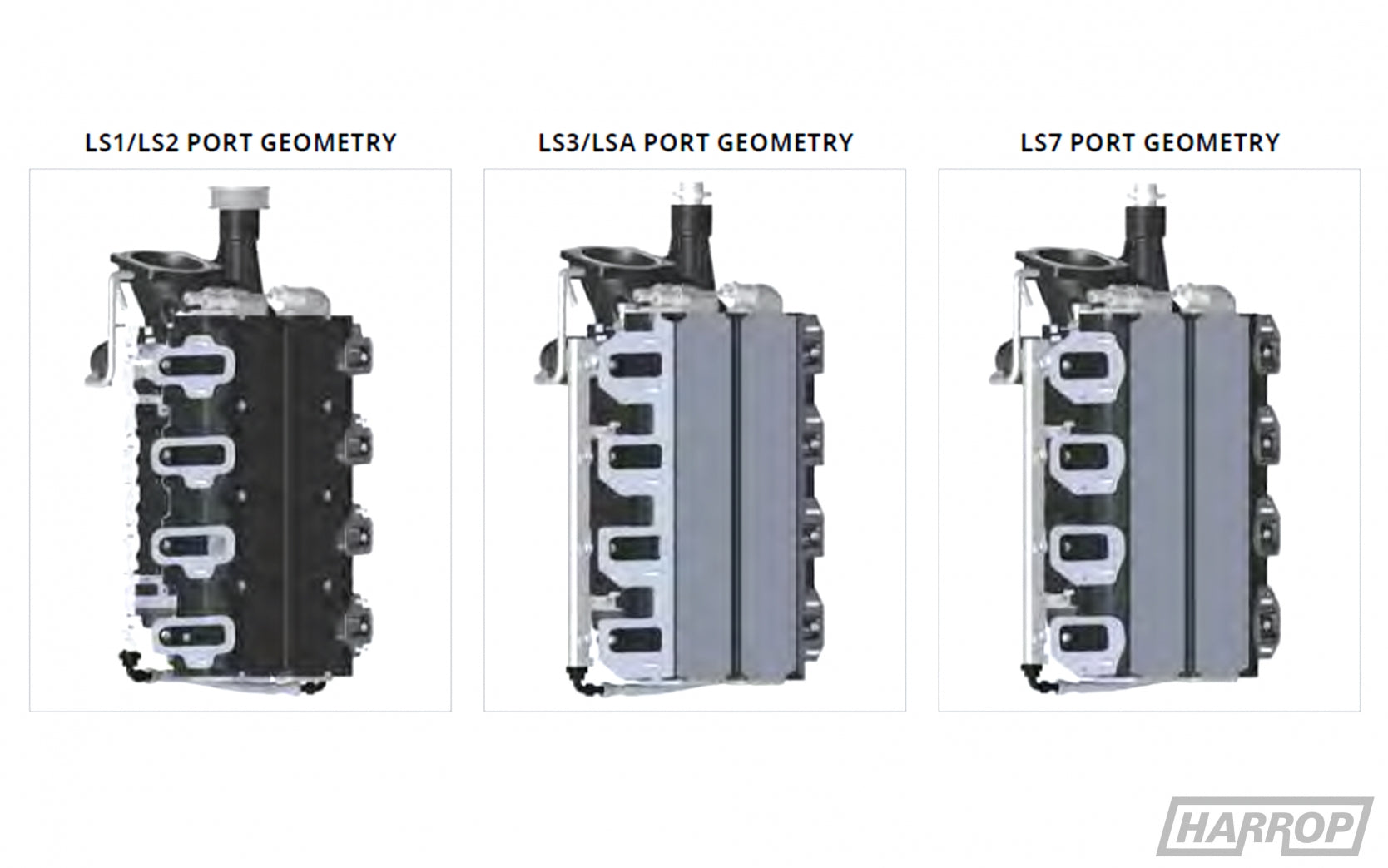

• Compatible with LS engine variants
