Harrop L8T TVS2650 ENGINE KIT

Key Features:

• Eaton R2650 Rotors: Incorporates Eaton's R2650 rotating group with a 170-degree lobe helix angle, delivering exceptional thermal efficiency and supporting horsepower capabilities exceeding 1,200 HP.
• Front Drive/Front Inlet Design: Features a shorter, less restrictive intake path to improve boost response and reduce inlet air temperatures compared to traditional systems.
• Flexible Throttle Body Compatibility: The supercharger manifold incorporates independent input drive assembly and throttle body housings, allowing flexible throttle body applications, including GM factory throttle bodies and aftermarket options up to 112mm.
• OEM Integration: Designed and manufactured by Harrop to original equipment standards, retaining all factory ancillaries such as A/C, viscous engine fan, and power steering.

Overview: Harrop's L8T TVS2650 Engine Kit is engineered for the L8T 6.6L V8 engine found in 3/4 and 1-ton GM trucks, offering a significant boost in performance. This system utilizes Eaton's largest and most efficient rotating group—the TVS2650—to deliver superior airflow and power. The front drive/front inlet design minimizes intake restrictions, enhancing boost response and overall efficiency. The supercharger manifold's independent input drive assembly and throttle body housings provide flexibility in throttle body applications, accommodating various setups to meet specific performance goals.

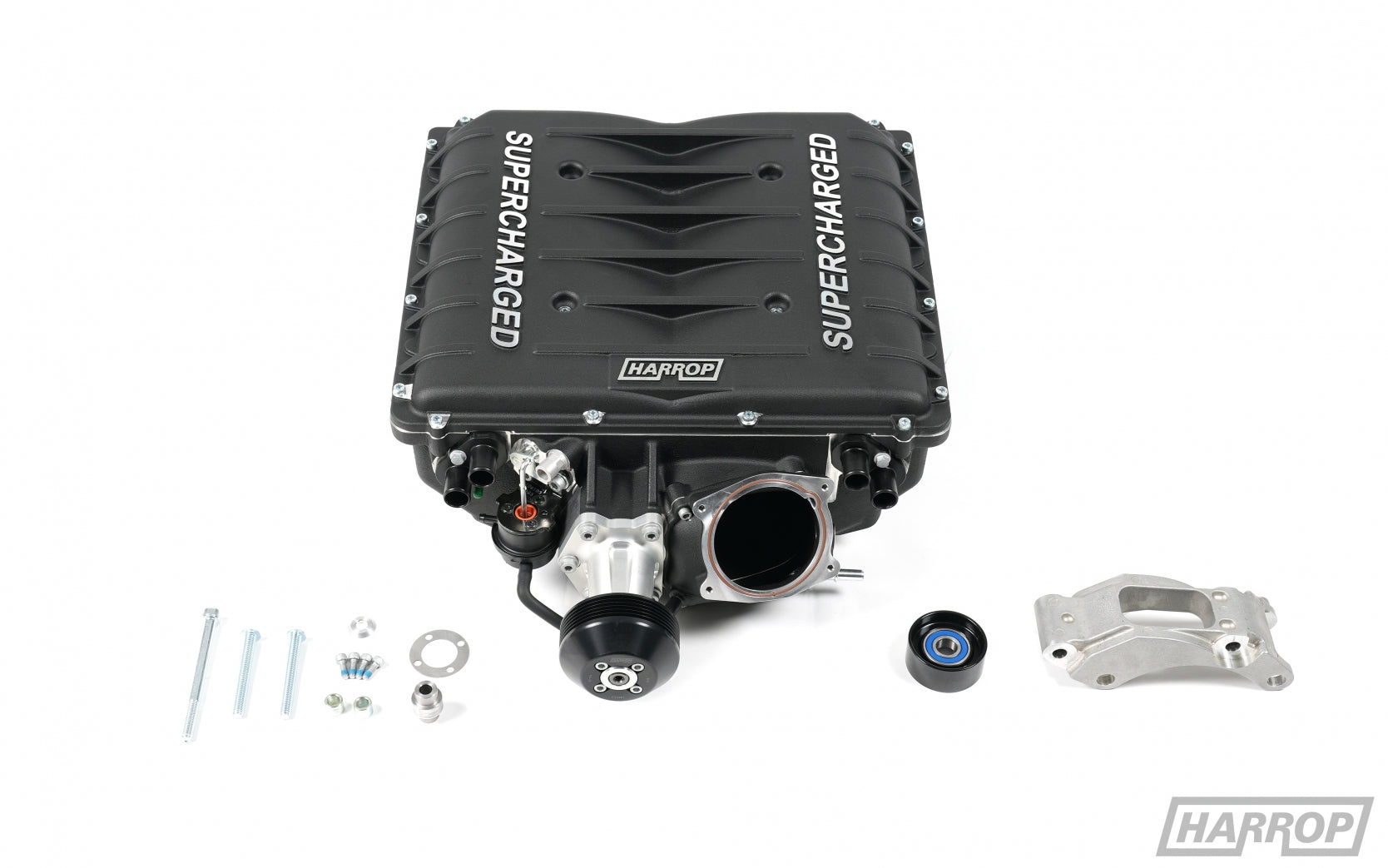

Kit Includes:

• High-efficiency TVS2650 front drive, front inlet supercharger
• Cast inlet manifold
• Supercharger FEAD idler (6PK)
• Supercharger pulley

Kit Does Not Include:

• Intake system (CAI or OTR)
• Throttle body
• Drive system components
• Wiring looms/harnesses
• Injectors
• Intercooler kit/front mount heat exchanger
• Installation kit (including loom extensions, hoses, and fittings)
• MAP sensor

Applications:

• GM trucks equipped with the L8T 6.6L V8 engine

Performance: Capable of producing over 1,200 HP with supporting engine modifications, this supercharger kit is designed for enthusiasts seeking maximum performance from their L8T-powered vehicles.
