Harrop TVS2300/2650 Supercharger Kit for Pontiac G8

Key Features:

• Advanced Eaton TVS Technology: Utilizes Eaton's latest TVS technology with a 170-degree lobe helix angle, delivering exceptional thermal efficiency.
• Enhanced Airflow: At 18,000 RPM, the system provides 25% more airflow than the TVS2300, achieving up to 14 psi of boost.
• Integrated Intercooling: Features a high-efficiency water-to-air intercooler system for optimal temperature control.
• Seamless Integration: Compatible with GM factory throttle bodies, 103mm aftermarket options, or Harrop's 110mm integrated throttle inlet.
• Optional Cold Air Induction: An over-the-radiator cold air induction kit is available to enhance performance.
• Versatile Drive Options: Supplied with a 6PK LS3 offset pulley for low-boost applications, with optional LSA FEAD drive offset and overdrive crank pulley selections for higher boost setups.

Overview: Harrop's TVS2300/2650 Supercharger Kit is engineered to elevate the performance of your Pontiac G8. Leveraging Eaton's cutting-edge TVS technology, this system offers significant airflow improvements and boost capabilities. The front drive, front inlet (FDFI) design eliminates the traditional transfer shaft, resulting in quieter operation and more efficient power delivery. The integrated intercooler system, combined with a large front-mount heat exchanger and high-flow Bosch intercooler pump, ensures superior thermal management, unlocking the full potential of late-model LS engines.

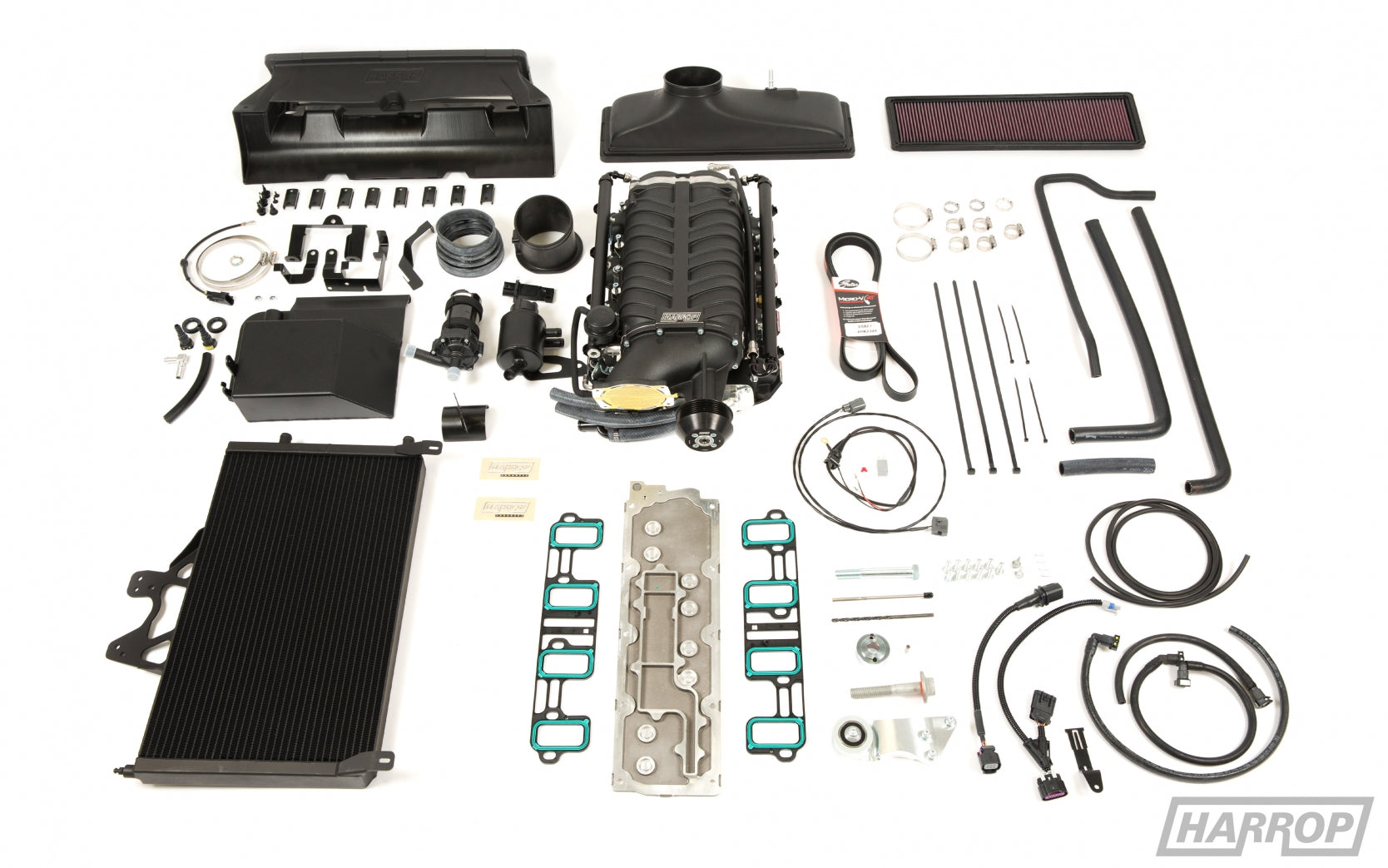

Kit Components:

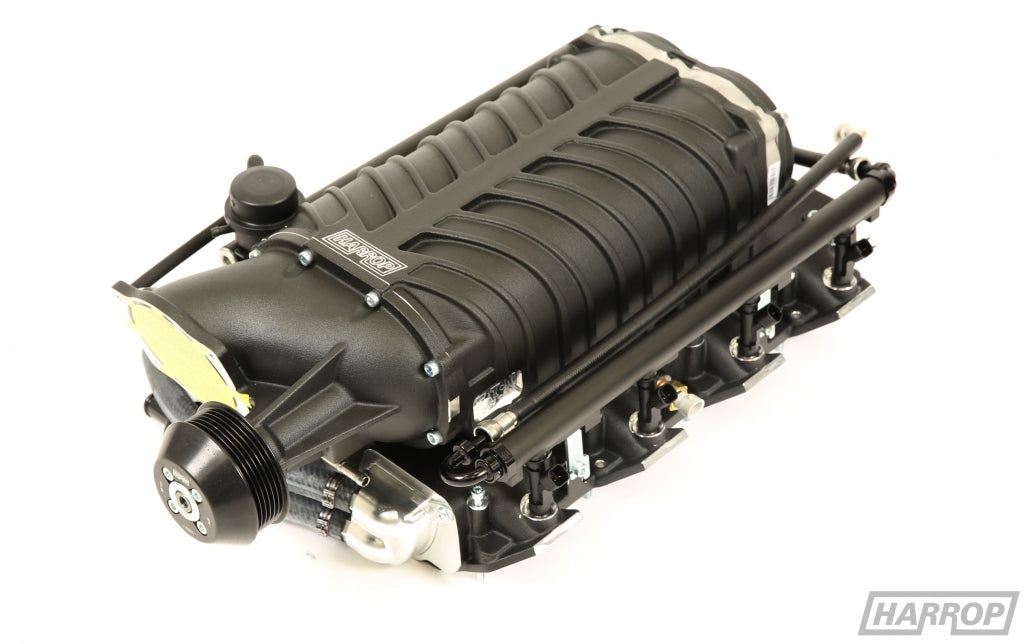

• Harrop FDFI Supercharger head unit with integrated bypass valve and choice of drive pulley size.
• High-flow cast aluminum intake manifold with anti-heat transfer insulation spacers.
• Industry-leading twin dual-pass intercooler cores with unique thermal sealing.
• Extruded aluminum fuel rails with high-flow DW 1000cc injectors.
• High-efficiency heat exchanger with maximum surface area and combined mounting brackets.
• Intercooler reservoir bottle and high-volume electric water pump with wiring kit.
• Over-the-radiator cold air intake with mounting kit and MAF-less boot configuration.
• All necessary fasteners, molded hoses, and fittings for installation.

Performance: Capable of producing over 1,200 horsepower with appropriate engine modifications, this supercharger kit is designed for enthusiasts seeking maximum performance from their Pontiac G8.

Applications: Specifically designed for Pontiac G8 models equipped with LS engines.
