Gen2 TVS2650 05/06 Pontiac GTO Supercharger Kit
Type: GTO Kits
Vendor: BoostDistrict
Description:
Introducing The Gen2 LSA style BoostDistrict TVS2650 supercharger kit! A supercharger system designed for volume, maximum airflow, unrestricted inlets, optimized charge air coolers… a system capable of big boost and horsepower while being efficient across all engine speeds.

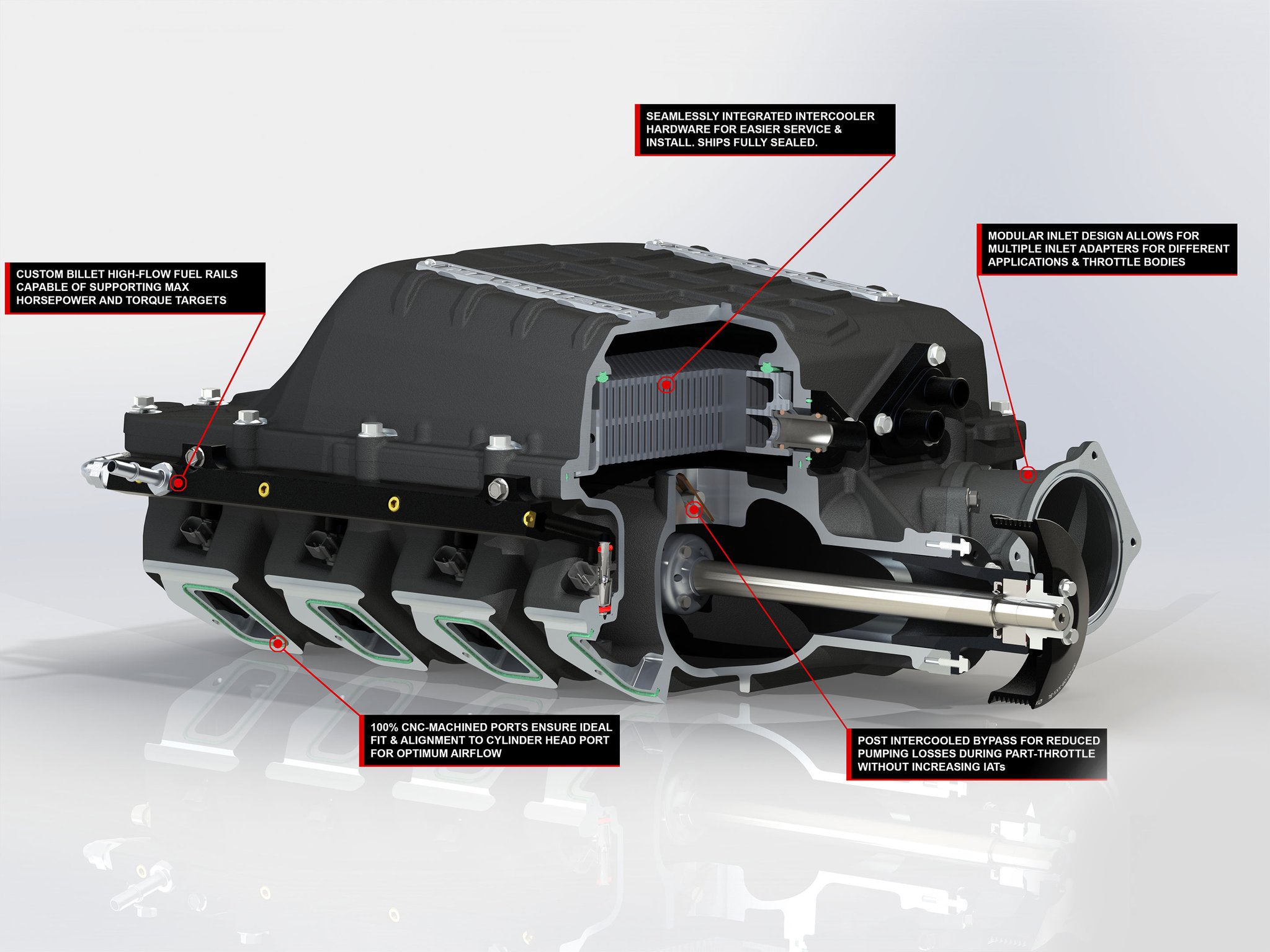

With the kits built in conjunction of using Magnuson's head unit, each supercharger housing features an optimized inlet porting and a large unrestricted discharge port for maximum flow and distribution across intercoolers using the patented Dynamic Flow Technology (DFT).
- Standard 1-year/12,000-mile limited Supercharger System Warranty.
- Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy. Intercooled bypass air is recirculated through the supercharger for rapid cooldown and ultimate performance.
- CNC-machined ports for optimized airflow into engine cylinders.

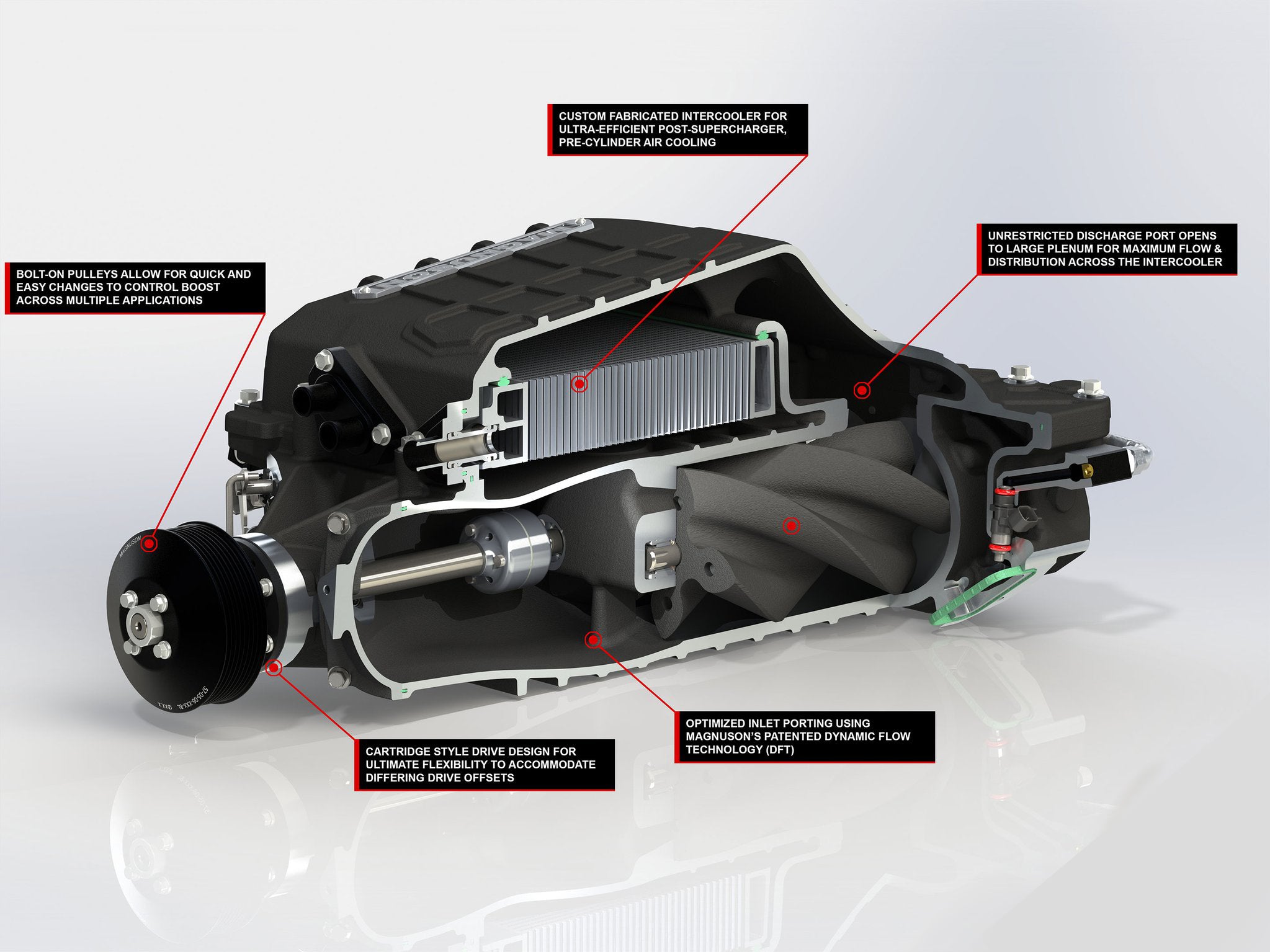

- Bolt-on pulleys allow for quick and easy changes to control boost across multiple applications.
- Unrestricted discharge port opens to large plenum for maximum flow & distribution across the intercooler
KIT INCLUDES:
- Brand new supercharger BoostDistrict Gen2 TVS2650 Head unit

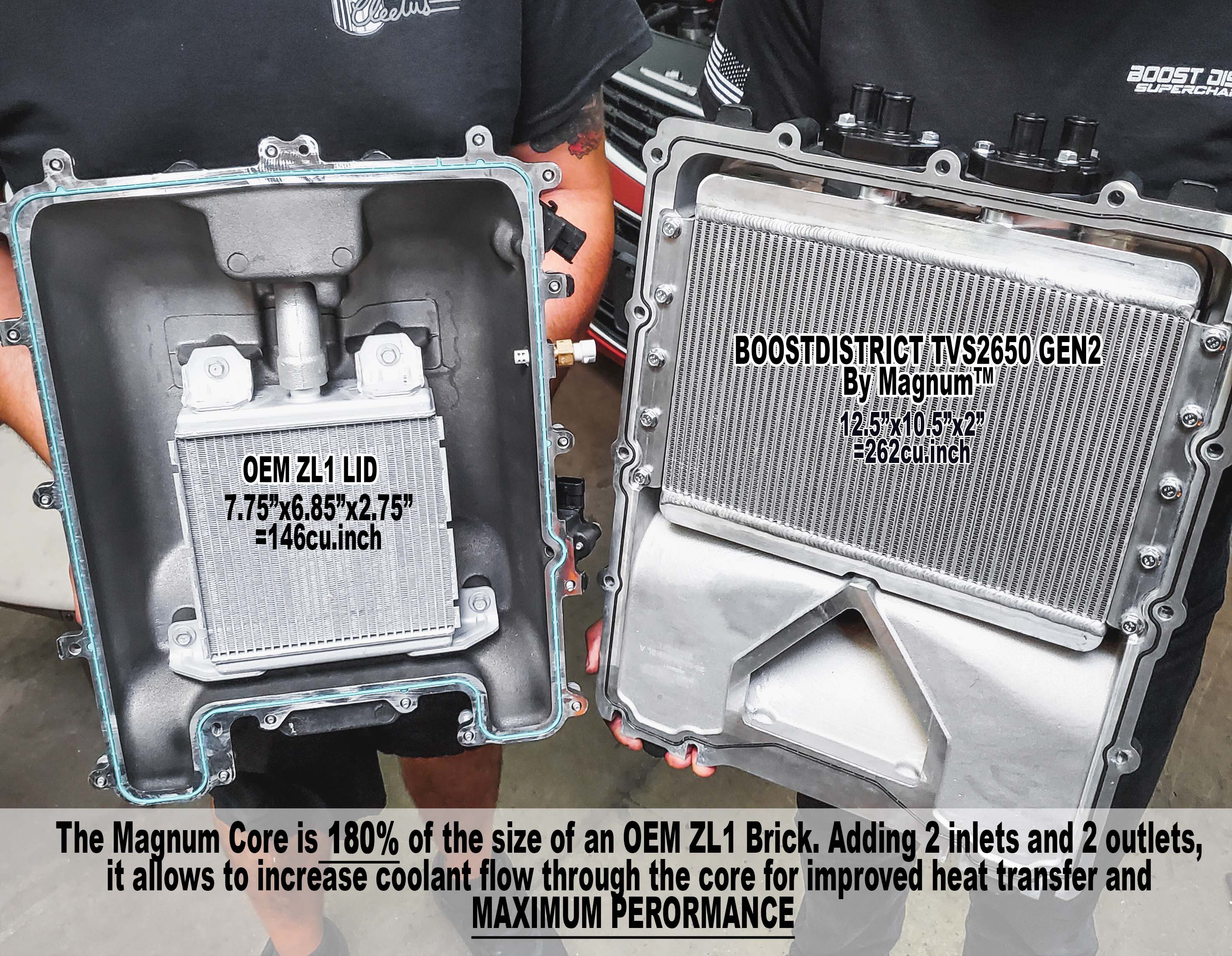

- Proprietary Cooling "Intercooler Brick" with billet end tanks
- 3.2" Supercharger Pulley (approx 10-11psi)
- GTO Belt Drive Adapter kit- utilizing 6rib drive to not need to change your OEM accessory drive. Everything stays as OEM- Including AC
- Plug and Play Wiring kit (no splicing of OEM Harness)
- Fuel Injectors (Upgrade options will be available)
- Head Adapter kit for Cathedral to square port
- Quick Connect Fuel Rails (OEM Quick Disconnect and AN Fittings Available )
- Fuel Crossover line
- OEM GM 3Bar MAP Sensor
- OEM GM IAT Sensor
- Gaskets necessary for the install
- Heat Exchanger
- Heat Exchanger Pump w/ wiring
- Low profile Valley Cover
- Fastener Kit
Power output: Available to configure from 600HP to 1100+HP with proper supporting modifications.
To complete the install, you will need:
- Cold air intake
- 3/4" Coolant hose to run heat exchanger lines
SHIPPING
Most Items ship within 2 weeks. Please allow 4-5 weeks to ship full kits.
Please note, Images shown below may have upgrades installed. Actual Product may vary.
