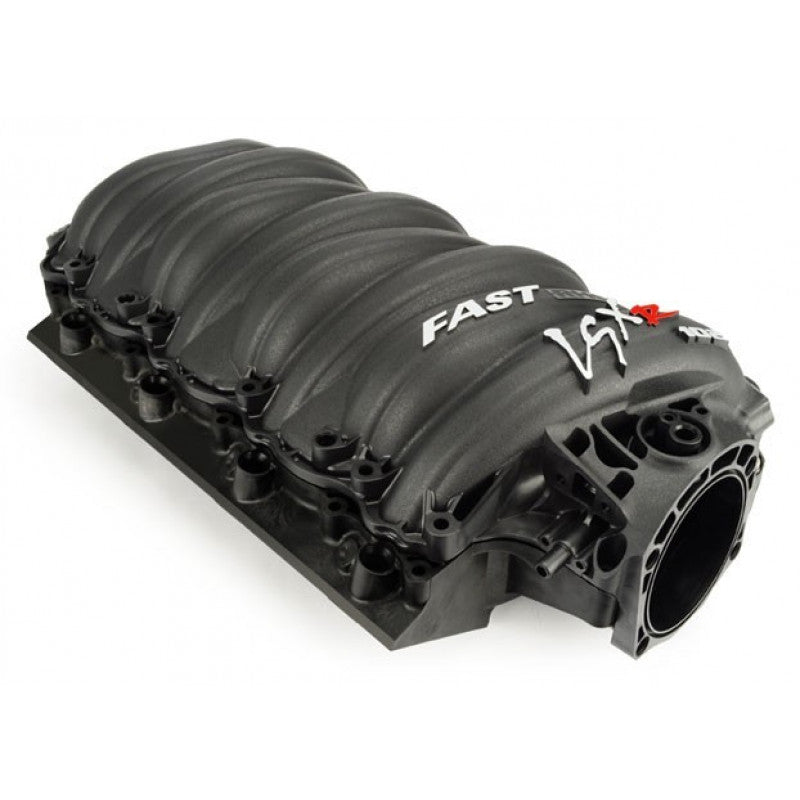

FAST "HIGH HP" LS1/LS2/LS6 LSXR 102mm INTAKE MANIFOLD - BLACK

LSXR │For Cathedral Port Heads (LS1, LS6 & LS2)

The Fast 102mm Black Intake Manifold is proven to deliver increased performance without compromising bottom-end drivability or high RPM power.

Constructed from the same advanced polymer material as the LSX™ 92mm Intake Manifold, the LSXR™ offers a host of benefits over aluminum aftermarket intakes, including lighter weight, increased strength and improved heat dissipating characteristics.

While the LSXR™ features a 102mm air inlet that is perfectly suited to the FAST Big Mouth 102mm Throttle Body, it can also be used with stock or aftermarket 90mm or 92mm throttle bodies. Other features include integrated nitrous bungs and perfect bolt-on fitment that allows the use of factory accessories without modification or clearance concerns.

• Black version of original LSX™ intake w/ 92mm opening & added refinements

• Includes stainless steel bolts, threaded insert throttle body mounts & mounting hardware

• Incorporates high-quality polymer materials, which resist “heat sink” effect of aluminum

• Maximizes potential of other popular engine performance upgrades such as cylinder heads

• Improved throttle body sealing flange & o-ring gasket

• 50 state legal under C.A.R.B. E.O. #D-279-9



THROTTLE BODY OPTIONS

• FAST™ Big Mouth Throttle Body* (CNC Billet)
• FAST™ Big Mouth LT Throttle Body* (Black Powder Coated)
• OEM/Stock 3-Bolt Throttle Body w/ FAST™ Adaptor Plate
• OEM/Stock 4-Bolt Throttle Body

FUEL RAIL OPTIONS

• FAST™ Anodized Billet Fuel Rail Kit
• OEM/Stock LS2 Fuel Rails w/ FAST™ Adaptor Kit
• OEM/Stock LS1/LS6 Fuel Rails
