Aeroforce Interceptor OBD2 Scan Gauge CN (2008+ LS Vehicles)

Aeroforce Ford CN Series SINGLE Interceptor Scan Gauge

This specific gauge works with these cars:

• -2008+ LS engines
• -2005-06 Pontiac GTO
• -2014-17 Chevy SS Sedan
• -2008-09 G8
• -2009+ Cadillac CTS-V
• -2010+ Camaro SS/ZL1
• -2006-09 Trailblaizer SS
• -Any LS2/LS3/LS7/LS9/LSA

The Interceptor is capable of displaying the following parameters, two at a time Not all are supported by every vehicle, so there is no guarantee that the Interceptor will display all of these on your particular car or truck. If the vehicle is broadcasting the parameter, the Interceptor will recognize this and make it available for display.

* RPM
* MPH
* Intake Air Temperature
* Intake Air Temperature 2 (charge air temp)
* Mass Air Flow Sensor Counts
* Mass Air Flow Sensor (lb/min.)
* Engine Coolant Temperature
* Long Term Fuel Trim (bank 1 and 2 if supported)
* Short Term Fuel Trim (bank 1 and 2 if supported)
* O2 Sensor Voltage (bank 1 and 2 if supported)
* Manifold Pressure in PSI (Boost pressure for factory turbo/supercharger applications)
* Ignition Advance
* Knock Retard
* Cylinder head temperature
* Engine Run Time
* Battery Voltage
* Throttle Position Percentage
* Throttle Position Voltage
* Engine Load
* Calculated Horsepower*
* Instantaneous and average fuel economy*
* 2 user configurable analog inputs**
* Injector Pulse Width
* Injector Duty Cycle
* Fuel Pump Duty Cycle (returnless systems)
* Fuel Pressure (returnless systems)
* Transmission Temperature (Automatics)
* Calculated Engine Torque


** 0-5v inputs can be configured to read the outputs from MAP sensors, Air/Fuel ratio kits, pressure or temperature sensors, etc. Raw voltage can be displayed or a conversion can be entered to read proper units. See our sensor page for compatible Aeroforce sensor kits.

The gauge displays 2 parameters at a time, but can be programmed to cycle through up to 8 parameters during a user determined period of time. This way you can monitor several items without taking any other actions.

DTC's (Diagnostic Trouble Codes) can be accessed and cleared via menu options.

A performance measurement mode is available as well. Once selected the gauge will measure 0-60 mph time, 1/8 and 1/4 mile elapsed time with speed.

High intensity LEDs can be used as shift lights or warning lights to indicate when a selected parameter exceeds an entered threshold. Due to the gauges extremely fast update rate, this light is very accurate and easy to set. Once you try it you'll find you can't live without it!

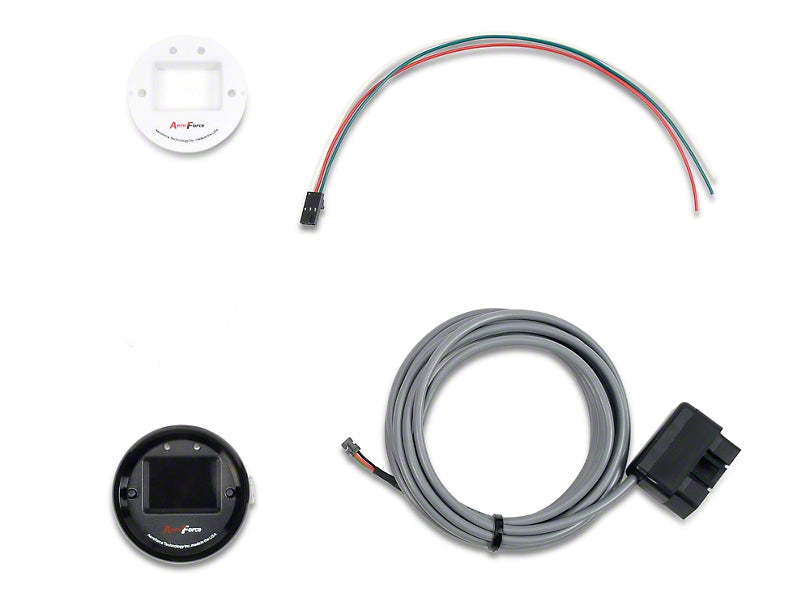

Installation is accomplished by simply plugging the supplied connector into the OBD2 port below the steering wheel and connecting a separate included wire to a switched 12v vehicle power source. Virtually plug-and-play!

*Using Cyclic Scan (TM)

Some examples of available parameters are:
* Engine RPM
* Transmission Temperature
* Knock Retard
* Mass Air Flow (MAF) Sensor
* Oil Temperature
* Turbo or Supercharger Boost Pressure
* Ignition advance
* Engine temperature
* Fuel Economy (MPG)
* Horsepower
* and many more..

This gauge will keep you interior looking tight, no bulky laptop, PDA, or unsightly box to look at. Once installed, the Interceptor will enhance the appearance of your vehicle's interior, rather than detract from it like other devices that are suctioned to the windshield or velcroed to the dash.

How does it work?

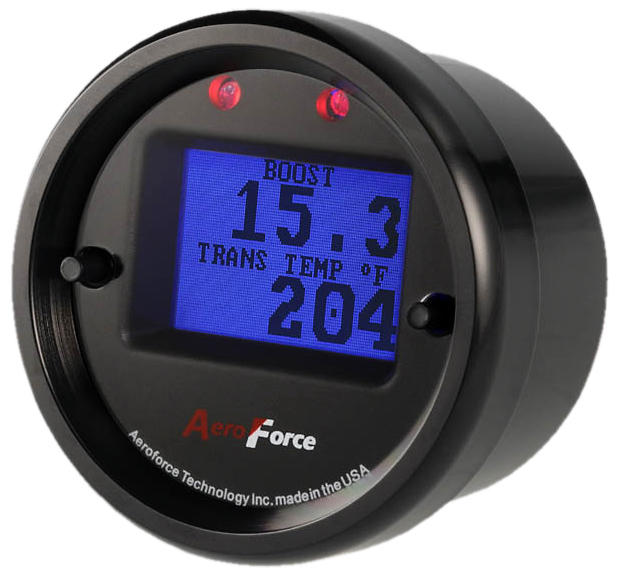

The Interceptor can be run by itself or in tandem with another Interceptor. The Interceptor is programmed to display the most important parameters supported by a given vehicle. It displays any two user chosen parameters on a brightly colored backlit LCD screen. There are several optional display, bezel , and face colors to choose from. See our images section for examples. Two switches, one for each field, allow the user to toggle through these parameters. The display is updated up to 20 times per second, ensuring that you will not miss any important data.

* The actual number of available parameters will vary depending on the manufacturer's specifications for that vehicle.

Due to the large number of color and bezel combinations all Aeroforce gauges are made to order and drop-shipped directly from the manufacturer. This process takes 1-3 days from ordering however if you need your gauge quicker than that we ask that you call your order in to verify how long it will take for the item to be made and shipped.
