2014-18 GM Truck and SUV Magnuson TVS2650 Supercharger kit L86/L83 6.2/5.3

TVS2650 Full Bolt on supercharger kit now available for your 2014-2020 GM Trucks and SUV with the 5.3L and 6.2L (L83/L86/LT1).

FITS:
2014-2018 GM Truck
2015-2020 GM SUV*

The Magnum Truck Kit will give your engine an incredible 45% boost in horsepower: 640 hp and 579 ft-lbs at the crank! Featuring a massive charge air cooler, sitting directly above the supercharger outlet for maximum cooling capability. The uniquely styled lid has been designed to allow consistent and uniform air flow to all eight cylinders, for reliable, repeatable performance, all day long!

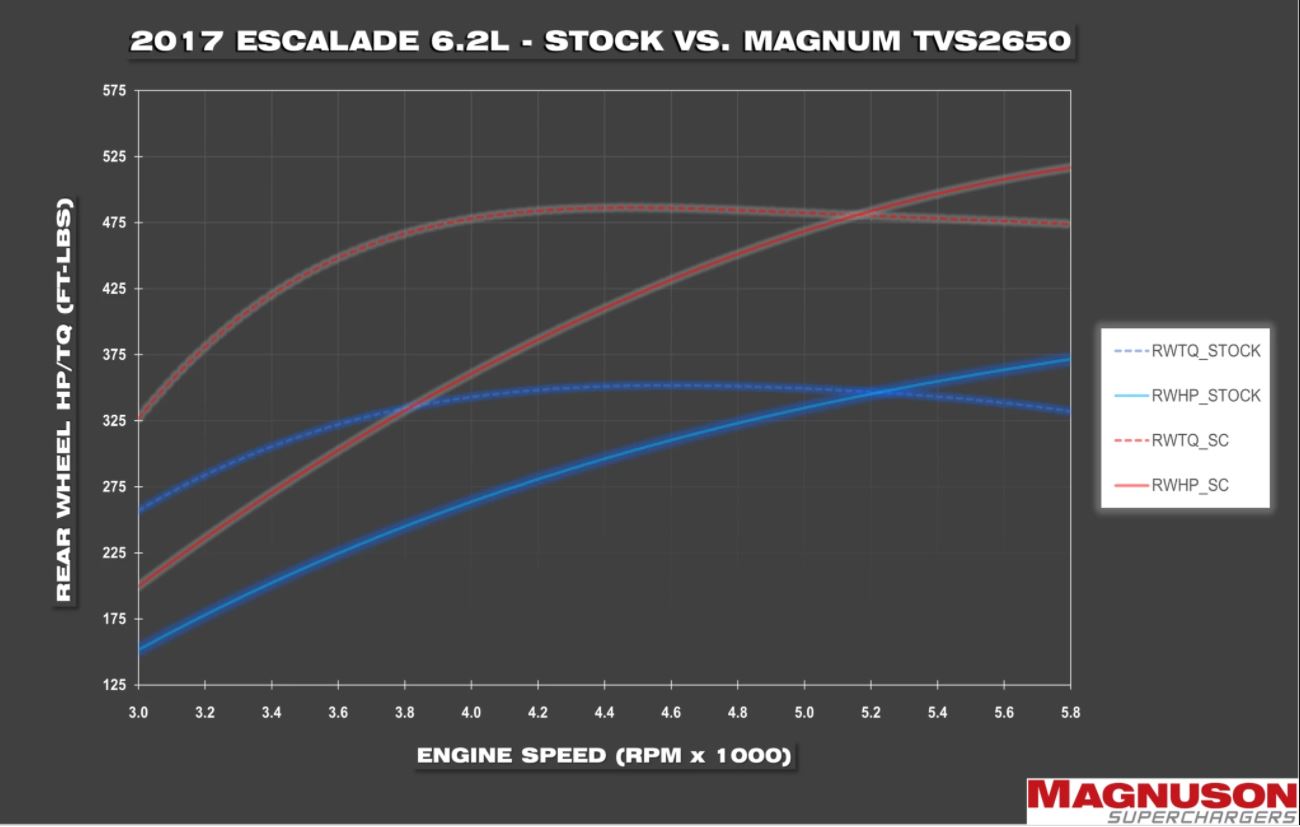

• 640 hp and 579 ft-lbs at 8 lbs of boost.
• Utilizes Eaton TVS(r) Technology. High helix, four lobe rotors for maximum supercharger efficiency across entire speed range.
• High flow durable bar and plate charge air cooler set-up with ¾" water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
• Vacuum bypass system for instantaneous boost response, improved part-load fuel economy, and rapid supercharger cooldown.
• Compatible with L86 stock 90mm throttle body, LT5 95mm throttle body, and up to a 103mm Nick Williams throttle body.
• Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
• Utilizes the factory beltline; the Magnum Truck System doesn’t compromise belt wrap of any components while providing over 180 degrees of supercharger pulley belt wrap.
• Unique housing, lid and intercooler geometry were developed and optimized to distribute airflow evenly across the large, highly efficient intercooler for maximum cooling to deliver consistent air charge temperatures in even the most challenging driving conditions including hot temperatures and towing .
• Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
• 3-year/36,000-mile Powertrain Warranty

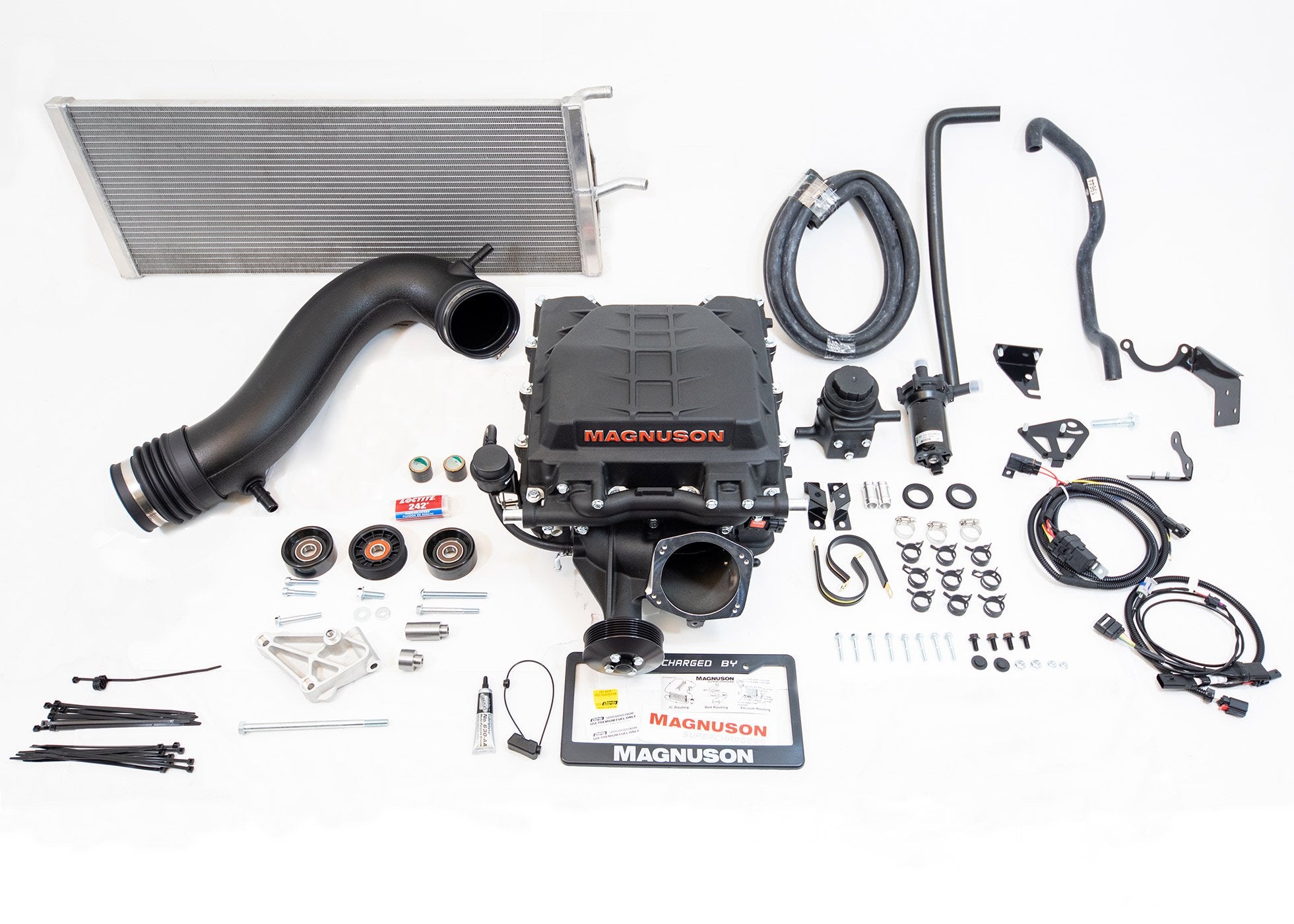

Magnuson only uses the highest quality components in our supercharger kits. Everything you need to supercharge your truck is included, right down to detailed step-by-step installation instructions. Order yours today and unleash the power of a Magnuson Supercharger on your Truck!

Tune Calibration included

L83 Trucks will need the Throttle body option added below

SHIPPING

USUALLY IN STOCK IN OUR WAREHOUSE. IF sold out, please allow 4-5 weeks to ship full kits.
